Alien K4 Edition - Dental Milling Machine
Ask a Question

VHF

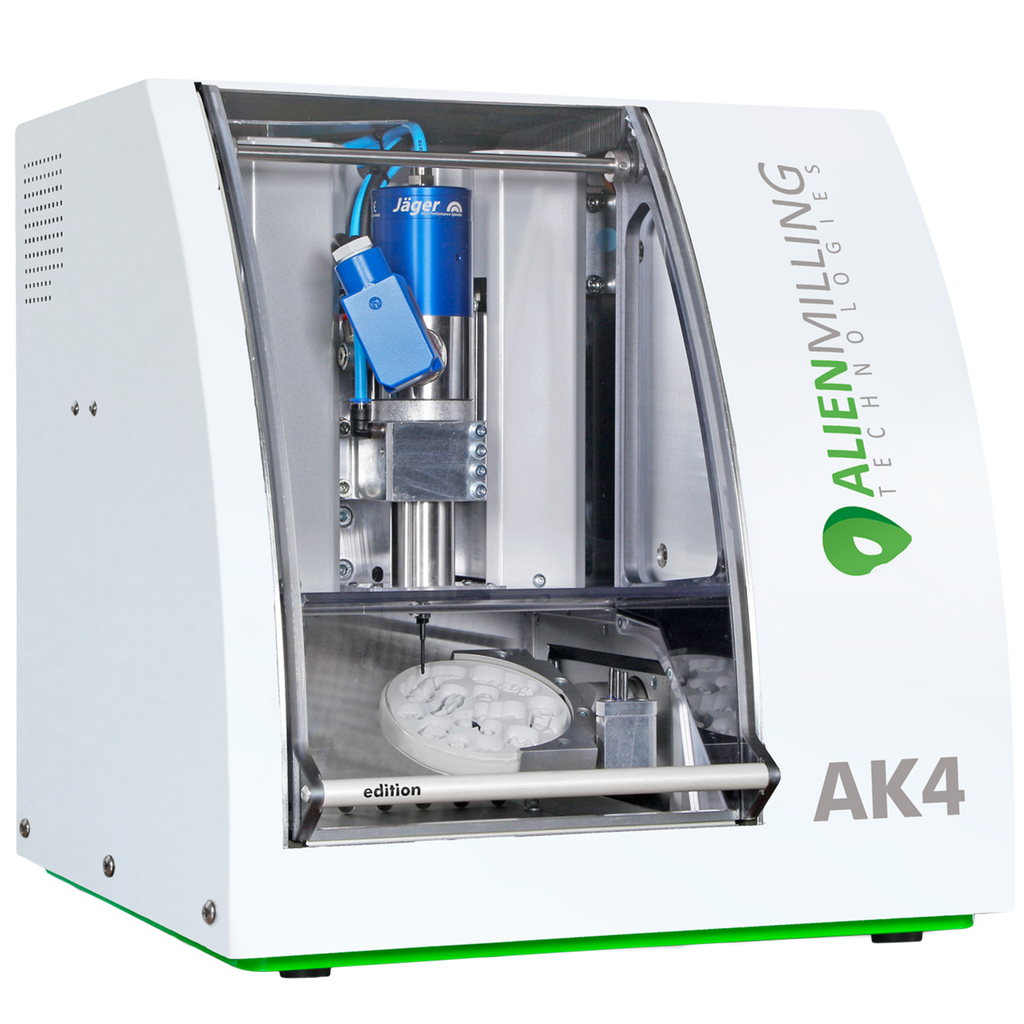

Alien K4 Edition - Dental Milling Machine

$22,990.00

K4 edition. Great results at a low price.

The extremely compact design of the K4 edition is a real eyecatcher. A closer look at the four-axis dry milling machine reveals its rigid structure. This ensures first-class results – even when working with extremely hard cobalt-chromium-based NEM materials.

    Maximum precision

    Automatic axis measurement and compensation ensure consistently high machining precision – and therefore perfect results.

    Automatic changer for 7 tools

    The K4 edition is equipped with an automatic tool changer for seven tools, which enables the complete machining of a blank without further intervention by the operator.


    Further features

    Maximum precision

    • Restorations in HD
    • High-quality spindle with 4-point bearing for maximum concentricity accuracy
    • 5 microns repetition accuracy
    • High rotational speeds of up to 60,000 RPM
    • Automatic axis calibration

    Powerful construction

    • Processes zirconia, composites and plastics as well as CoCr
    • An uncompromisingly robust build with extremely compact dimensions
    • Four axes working simultaneously for high indication diversity

    Complete independence

    • Almost unlimited availability of materials in 98 mm disc format, up to a thickness of 25 mm; no restrictions in terms of the material manufacturer

    High reliability

    • 100% developed and manufactured in Germany
    • Tactile measuring pin for use of diamond tools
    • 24-month warranty
    • Thousands of machines in use world-wide

    Maximum efficiency

    • Automatic changer for seven tools
    • Best price-performance ratio
    • Easy to operate DentalCAM with DirectMill function included – no annual fees

    Warranty

    1 Year limited warranty on all parts, except for wear and tear.
    Tools other than OEM VHF Tools will void warranty.



    Bundles

    Installation

    No Installation
    Machine will be shipped with no Training or installation.

    Remote Installation
    A Remote Installation Representative will walk you through the installation process via phone, and Teamviewer.

    On Site Installation
    A Technician will be on site, to install and train your technicians on how to operate and maintain your new milling machine.

    CAM Computer

    No Computer
    Customer required to provide a PC which meets all minimum requirements.

    • Intel i7 or better
    • 16GB DDR4 Ram or Better
    • 256GB SSD or Better
    • Gigabit Ethernet or Better



    Computer with Monitor
    Alien Milling Recommended computer that exceeds all minimum requirements.

    Includes 27" Monitor, Wireless Keyboard and Mouse Combo.

    Suction Unit

    No Suction Unit
    Customer required to provide a suction unit, recommended for Zirconia manufacturing inside a dental laboratory.

    Renfert Silent CompactCAM


     Advantages

    • Bi-directional communication between extraction unit and CAM unit thanks to the PLC interface.
    • Low operating noise of max. 55 dB(A).
    • 3x longer service life in comparison to conventional collector motors (1,000 operating hours guaranteed).

    Details

    • No follow-up costs due to bag-free dust collection.
    • Working without interruption due to uncomplicated motor change within minutes.

    Alien Zirconia Packages

    1 of each  STARTER ESSENTIAL PRO
      12mm A2
    16mm A2
    20mm A2    		 12mm A1, A2, A3, B1
    16mm A1, A2, A3, B1
    12mm A1, A2, A3, B1    		 12mm A1, A2, A3, A3.5, B1, B2, B3, C1, C2, D2, D3, White
    16mm A1, A2, A3, A3.5, B1, B2, B3, C1, C2, D2, D3, White
    20mm A1, A2, A3, A3.5, B1, B2, B3, C1, C2, D2, D3, White
    25mm A1, A2, B1, White
    30mm A1, A2, B1, White
      12mm A2
    18mm A2      		 12mm A1, A2, A3, Hollywood
    18mm A1, A2, A3, Hollywood    		 12mm A1, A2, A3, A3.5, B2, C2, Hollywood
    18mm A1, A2, A3, A3.5, B2, C2, Hollywood
      14mm A2
    20mm A2    		 14mm A1, A2, A3, B1
    20mm A1, A2, A3, B1      		 14mm BL1, BL2, A1, A2, A3, B1
    20mm BL1, BL2, A1, A2, A3, B1
      14mm A2
    20mm A2    		 14mm A1, A2, A3, B1
    20mm A1, A2, A3, B1    		 14mm BL1, BL2, A1, A2, A3, A3.5, B1, B2, C1, C2, D2, D3, White
    20mm BL1, BL2, A1, A2, A3, A3.5, B1, B2, C1, C2, D2, D3, White

    OEM VHF Tools

    Tools


    – universal cutters

    • double tooth radius cutters: 2 x 0.3 mm
    • cylindric double tooth cutters: 1 x 0.5 mm
    • double tooth radius cutters: 3 x 0.6 mm
    • cylindric double tooth cutters: 2 x 1.2 mm


    – for wax and plastics (PMMA)

    • single tooth radius cutters: 1 x 1.0 mm,
    • single tooth radius cutters: 1 x 2.0 mm
    • double tooth radius cutters: 1 x 1.0 mm,
    • double tooth radius cutters: 1 x 2.0 mm
    • cylindric single tooth cutter: 1 x 2.5 mm


    – for zirconium oxide, with coating

    • double tooth radius cutters: 1 x 1.0 mm
    • triple tooth radius cutters: 2 x 2.0 mm


    – for zirconium oxide, with diamond coating

    • double tooth radius cutters: 1 x 0.6 mm,
    • double tooth radius cutters: 2 x 1.0 mm,
    • triple tooth radius cutters: 2 x 2.0 mm
    • cylindric double tooth cutter: 1 x 1.2 mm


    – for composites

    • double tooth radius cutters: 1 x 1.0 mm,
    • double tooth radius cutters: 2 x 2.0 mm




    – for non-precious alloys on CoCr basis

    • double tooth radius cutters: 1 x 0.6 mm,
    • double tooth radius cutters: 1 x 1.0 mm
    • four tooth radius cutters: 2 x 2.0 mm
    • double tooth torus cutter: 1 x 1.2 mm
